30 In-ground

In-ground foodlights

In-ground foodlights

Protection class IP 67 for metal halide lamps HIT installation housing made of cast aluminium

cover made of cast aluminium respectively stainless steel refector made of anodised pure aluminium safety glass clear

insert hole: ø 192 mm x 300 mm surface temperature max. 125 °C loading max. 3000 kg

690038 Louvre

690039 Infrared flter to reduce the surface temperature by approx. 20%

Art.-no. Lamp Base Material / Colour

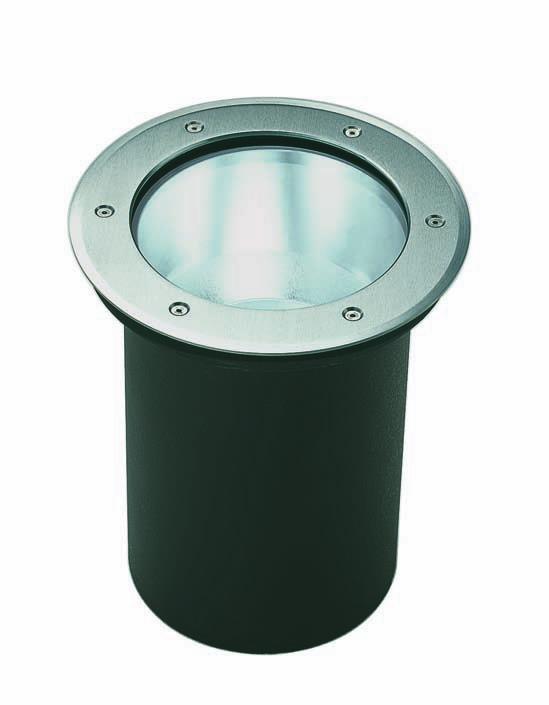

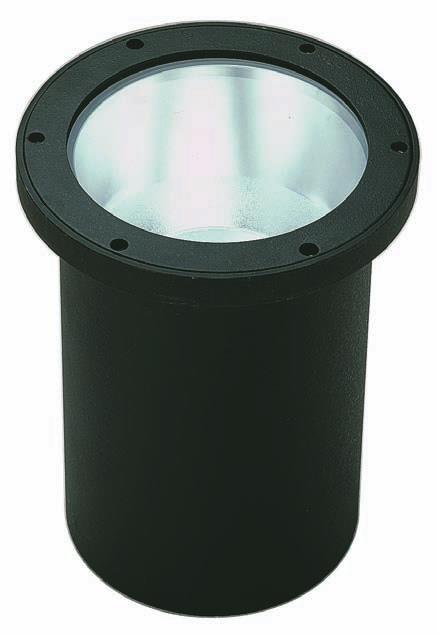

662169 1 x HIT-CE 70 W G12 black 692170 1 x HIT-CE 70 W G12 StSt

symmetrical

symmetrical

n Anti-slip glass, different lamps and asymmetrical light output are available on request.

n For different lamps available: HI 35 to 150 W HM 50 to 125 W HS 70 to 150 W TC 10 to 42 W

..2170

..2169

..2113

..2118

Protection class IP 67

for compact fuorescent lamps TC-TEL with electronic ballast installation housing made of cast aluminium

cover made of cast aluminium respectively stainless steel refector made of anodised pure aluminium safety glass clear

insert hole: ø 215 mm x 205 mm surface temperature max. 85 °C loading max. 3000 kg

Art.-no. Lamp Base Material / Colour

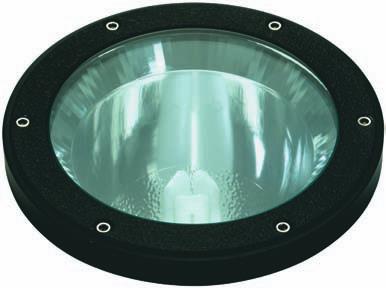

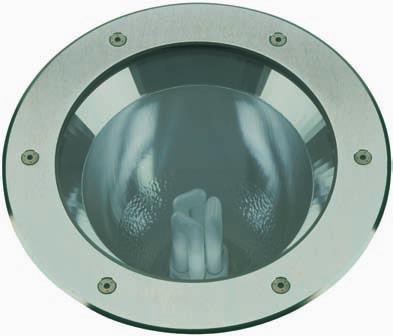

662118 1 x TC-TEL 18 W GX24q-2 black 692113 1 x TC-TEL 18 W GX24q-2 StSt

n Anti-slip glass and equipped for different lamps are available on request.

HIT
