32 In-ground

..2114

..2115

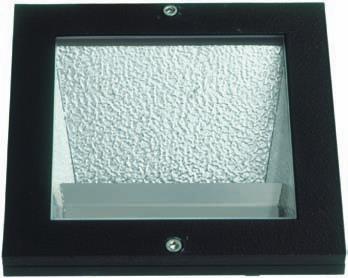

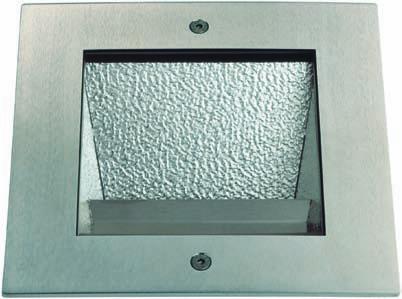

In-ground foodlights

Protection class IP 67 for metal halide lamps HIT installation housing made of cast aluminium

cover made of cast aluminium respectively stainless steel refector made of anodised pure aluminium safety glass clear

insert hole:  260 mm x 160 mm surface temperature max. 115 °C loading max. 3000 kg

Art.-no. Lamp Base Material / Colour 

662114 1 x HIT-CE 70 W G12 black 692115 1 x HIT-CE 70 W G12 StSt

asymmetrical

..2174

In-ground foodlights

Protection class IP 67 for tungsten halogen lamps QT 14 installation housing made of cast aluminium

cover made of cast aluminium respectively stainless steel refector made of anodised pure aluminium safety glass clear

insert hole: ø 110 mm x 140 mm surface temperature max. 148 °C loading max. 1200 kg

Art.-no. Lamp Base Material / Colour 

662173 1x QT 14 60 W G9 black 692174 1x QT 14 60 W G9 StSt

..2173

symmetrical

n Anti-slip glass and equipped for different lamps are available on request.

HIT
