26 In-ground

In-ground foodlight

In-ground foodlight

Protection class IP 67

for tungsten halogen lamps QT-DE 12 symmetrical and asymmetrical light distribution possible

installation housing made of cast aluminium

cover made of stainless steel, refector made of anodised pure aluminium safety glass satine

insert hole: ø 130 mm x 130 mm surface temperature max. 160 °C loading max. 1000 kg

Protection class IP 67

for tungsten halogen lamps QT-DE 12 symmetrical and asymmetrical light distribution possible cast aluminium

refector made of anodised pure aluminium borosilicate glass clear insert hole: ø 130 mm x 115 mm surface temperature max. 160 °C loading max. 120 kg

..2134

..2148

30° slewable

30° slewable

Art.-no. Lamp Lamp lenght Base Material 

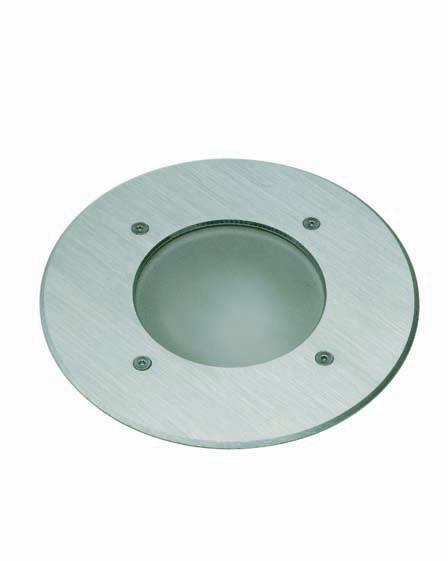

692148 1 x QT-DE 12 60 W 74,9 mm R7s StSt

Art.-no. Lamp Lamp lenght Base Colour 

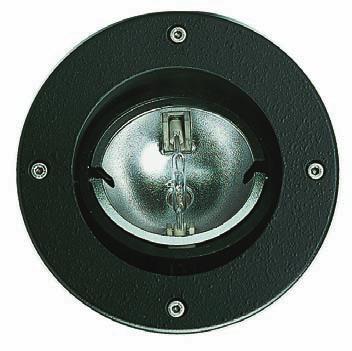

662134 1 x QT-DE 12 60 W 74,9 mm R7s black
