« Previous Page Table of Contents Next Page »27 In-ground

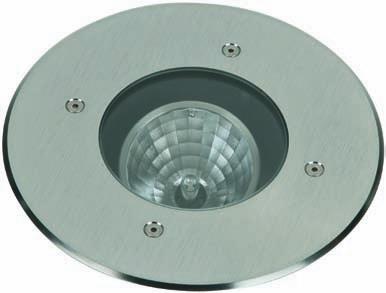

In-ground foodlight
Protection class IP 67 for tungsten halogen lamps QT 14 symmetrical and asymmetrical light distribution possible
installation housing cast aluminium cover made of stainless steel refector made of anodised pure aluminium safety glass clear
insert hole: ø 130 mm x 130 mm surface temperature max. 120 °C loading max. 1000 kg
Art.-no. Lamp Base Material
692149 1 x QT 14 60 W G9 StSt
..2149
30° slewable
ø 220 ø 160
ø 130
..2132

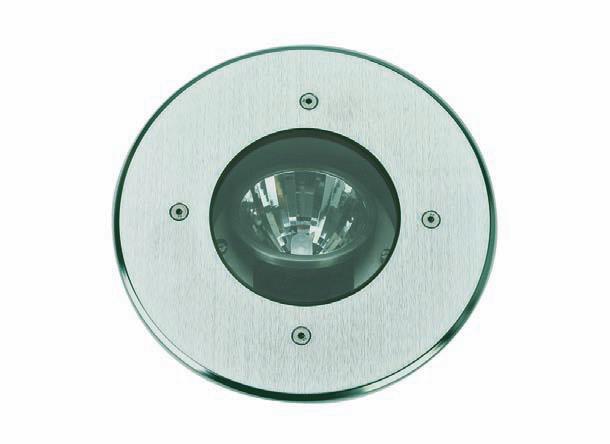

Art.-no. Lamp Base Material In-ground foodlight
692132 1 x HIT-TC-CE 20 W G8,5 StSt
Protection class IP 67 for metal halide lamps HIT with electronic ballast
symmetrical and asymmetrical light distribution possible
installation housing cast aluminium cover made of stainless steel refector made of anodised pure aluminium safety glass clear
insert hole: ø 130 mm x 195 mm surface temperature max. 55 °C loading max. 1000 kg
In-ground foodlight
30° slewable
..2149 Half beam angle 30°
Distance ø Cube Illumination
5,0
4,0
3,0
2,0
1,0
3,00
2,40
1,80
1,20
0,60
100
150
270
620
2500
..2132 Half beam angle 30°
Distance [m]
ø Cube [m]
Illumination [lx]
HIT
